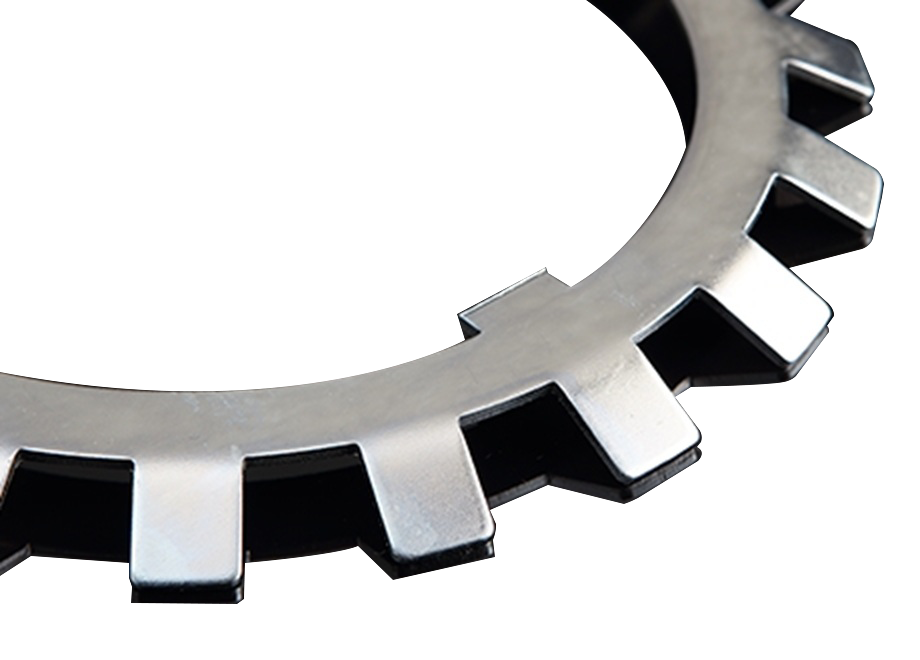

MB Bearing Lock Washers

Thread size: 10-280 mm

MB Spec Sheet

This combination does not exist.

Specification

Lock Washers No.	D1 mm	k mm	E mm	t mm	S mm	D4 mm	D5 mm	r mm	u mm	Number of Tongues	Weight per 100 pieces kg	Lock Nut No.
MB00	10	8.5	3	1	3	13.5	21	0.5	2	9	0.131	KM00
MB01	12	10.5	3	1	3	17	25	0.5	2	9	0.192	KM01
MB02	15	13.5	4	1	4	21	28	1	2.5	13	0.253	KM02
MB03	17	15.5	4	1	4	24	32	1	2.5	13	0.313	KM03
MB04	20	18.5	4	1	4	26	36	1	2.5	13	0.35	KM04
MB05	25	23	5	1.2	5	32	42	1	2.5	13	0.64	KM05
MB06	30	27.5	5	1.2	5	38	49	1	2.5	13	0.78	KM06
MB07	35	32.5	6	1.2	5	44	57	1	2.5	15	1.04	KM07
MB08	40	37.5	6	1.2	6	50	62	1	2.5	15	1.23	KM08
MB09	45	42.5	6	1.2	6	56	69	1	2.5	17	1.52	KM09
MB10	50	47.5	6	1.2	6	61	74	1	2.5	17	1.6	KM10
MB11	55	52.5	8	1.5	7	67	81	1	4	17	1.96	KM11
MB12	60	57.5	8	1.5	7	73	86	1.2	4	17	2.53	KM12
MB13	65	62.5	8	1.5	7	79	92	1.2	4	19	2.9	KM13
MB14	70	66.5	8	1.5	8	85	98	1.2	4	19	3.34	KM14
MB15	75	71.5	8	1.5	8	90	104	1.2	4	19	3.56	KM15
MB16	80	76.5	10	1.8	8	95	112	1.2	4	19	4.64	KM16
MB17	85	81.5	10	1.8	8	102	119	1.2	4	19	5.24	KM17
MB18	90	86.5	10	1.8	10	108	126	1.2	4	19	6.23	KM18
MB19	95	91.5	10	1.8	10	113	133	1.2	4	19	6.7	KM19
MB20	100	96.5	12	1.8	10	120	142	1.2	6	19	7.65	KM20
MB21	105	100.5	12	1.8	12	126	145	1.2	6	19	8.26	KM21
MB22	110	105.5	12	1.8	12	133	154	1.2	6	19	9.4	KM22
MB23	115	110.5	12	2	12	137	159	1.5	6	19	10.8	KM23
MB24	120	115	14	2	12	138	164	1.5	6	19	10.5	KM24
MB25	125	120	14	2	12	148	170	1.5	6	19	11.8	KM25
MB26	130	125	14	2	12	149	175	1.5	6	19	11.3	KM26
MB27	135	130	14	2	14	160	185	1.5	6	19	14.4	KM27
MB28	140	135	16	2	14	160	192	1.5	8	19	14.2	KM28
MB29	145	140	16	2	14	171	202	1.5	8	19	16.8	KM29
MB30	150	145	16	2	14	171	205	1.5	8	19	15.5	KM30
MB31	155	147.5	16	2.5	16	182	212	1.5	8	19	20.9	KM31
MB32	160	154	18	2.5	16	182	217	1.5	8	19	22.2	KM32
MB33	165	157.5	18	2.5	16	193	222	1.5	8	19	24.1	KM33
MB34	170	164	18	2.5	16	193	232	1.5	8	19	24.7	KM34
MB36	180	174	20	2.5	18	203	242	1.5	8	19	26.8	KM36
MB38	190	184	20	2.5	18	214	252	1.5	8	19	27.8	KM38
MB40	200	194	20	2.5	18	226	262	1.5	8	19	29.3	KM40
MB44	220	213	24	3	20	250	292	-	10	19	48.3	KM44
MB48	240	233	24	3	20	270	312	-	-	19	50.2	KM48
MB52	260	253	28	3	24	300	342	-	-	23	72.9	KM52
MB56	280	273	28	3	24	320	362	-	-	23	75.9	KM56

NO. MB00-MB40 also available for 304 stainless steel.
NOTE: The specifications of MB can be applied for AW.
