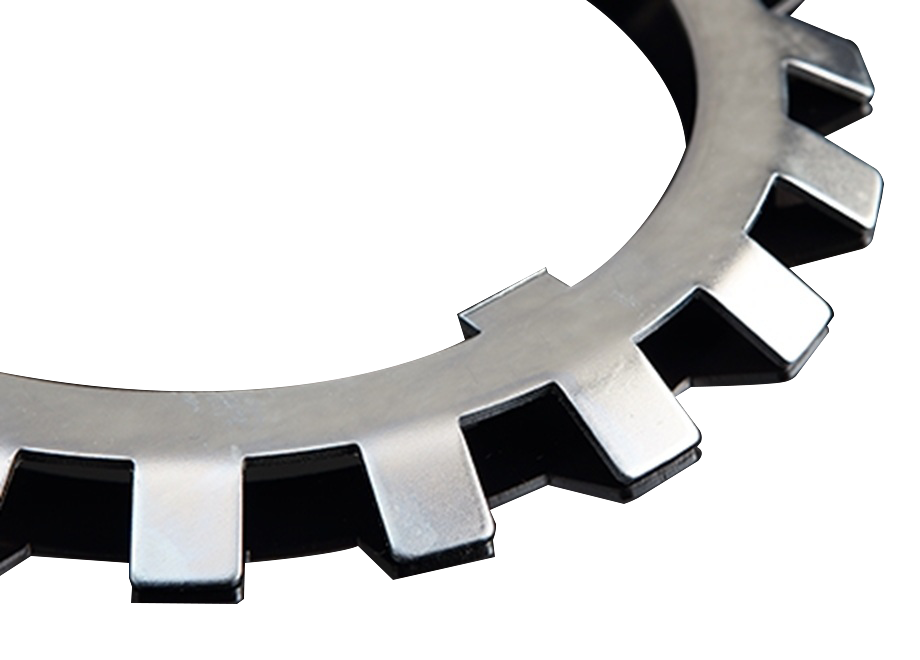

AWL Bearing Lock Washers

https://www.chin-sing.com/web/image/product.template/65/image_1920?unique=3e6199b

Thread size: 120-200 mm

AWL Spec Sheet

  • ​

This combination does not exist.

Specification Applications Related Products

Specification

Lock Washers No.D1
mm		k
mm		E
mm		t
mm		S
mm		D4
mm		D5
mm		r
mm		u
mm		Number of TonguesWeight per 100 pieces
kg		Lock Nut No.
AWL24 120 115 14 2 12 135 151 1.5 6 19 7.700 ANL24
AWL26 130 125 14 2 12 145 161 1.5 6 19 8.700 ANL26
AWL28 140 135 16 2 14 155 171 1.5 8 19 10.900 ANL28
AWL30 150 145 16 2 14 170 188 1.5 8 19 11.300 ANL30
AWL32 160 154 18 2.5 16 180 199 1.5 8 19 16.200 ANL32
AWL34 170 164 18 2.5 16 190 211 1.5 8 19 19.000 ANL34
AWL36 180 174 20 2.5 18 200 221 1.5 8 19 18.000 ANL36
AWL38 190 184 20 2.5 18 210 231 1.5 8 19 20.500 ANL38
AWL40 200 194 20 2.5 18 222 245 1.5 8 19 21.400 ANL40
  • AWL24-AWL40 also available for 304 stainless steel.
  • NOTE: The specifications of AWL can be applied for MBL.

AWL Spec Sheet

Applications

Industries Our Product Serves

Explore how this product integrates into key industrial applications and unlocks new possibilities.

Automotive Industry

Steel Industry

Paper & Printing Industry

Mining & Heavy Industry

Sports Equipment

Medical Equipment

Building & Furniture Decoration

Agricultural Machinery
