  4. H30 Bearing Adapter Sleeves

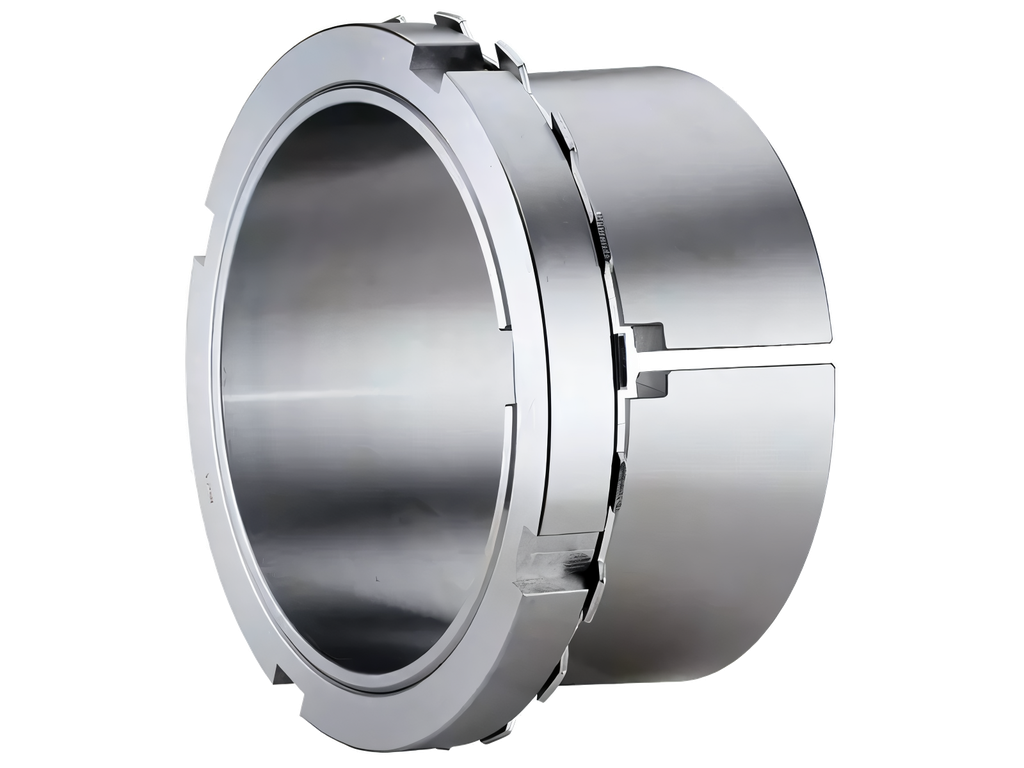

H30 Bearing Adapter Sleeves

https://www.chin-sing.com/web/image/product.template/20/image_1920?unique=0d8771d

Length: 72-247 mm

H30 Spec Sheet

  • H23

This combination does not exist.

Specification Applications Related Products

Specification

Adapter Sleeve NO.d1L

mm		D3

mm		C

mm		C4)1

mm		Lock NutLock Washer &
Lock Plate		Weight

kg
H
mm		HE
in		HA
in
H3024 110 4 1/4 4  3/16 72 145 22 - ANL24 AWL24 1.930
H3026 115 4 1/2 4  7/16 80 155 23 - ANL26 AWL26 2.850
H3028 125 5    4 15/16 82 165 24 - ANL28 AWL28 3.160
H3030 135 5 1/4 5  3/16 87 180 26 - ANL30 AWL30 3.890
H3032 140 5 1/2 5  7/16 93 190 28 - ANL32 AWL32 5.210
H3034 150 6    5  15/16 101 200 29 - ANL34 AWL34 5.990
H3036 160 6 1/2 6  7/16 109 210 30 - ANL36 AWL36 6.830
H3038 170 6 3/4 6 15/16 112 220 31 - ANL38 AWL38 7.450
H3040 180 7    7  3/16 120 240 32 - ANL40 AWL40 9.190
H3044 200 8    7  15/16 128 260 30 41 ANL44 ALL44 10.300
H3048 220 8  15/16 133 290 34 46 ANL48 ALL48 13.200
H3052 240 9 1/2 9  7/16 147 310 34 46 ANL52 ALL52 15.300
H3056 260 10 1/2 10  7/16 152 330 38 50 ANL56 ALL56 17.700
H3060 280 - 10 15/16 168 360 42 54 ANL60 ALL60 22.800
H3064 300 12 11 15/16 171 380 42 55 ANL64 ALL64 24.600
H3068 320 12 1/2 12 7/16 187 400 45 58 ANL68 ALL68 28.700
H3072 340 - 13 7/16 188 420 45 58 ANL72 ALL72 30.500
H3076 360 - 13 15/16 193 450 48 62 ANL76 ALL76 35.800
H3080 380 - - 210 470 52 66 ANL80 ALL80 41.300
H3084 400 - - 212 490 52 66 ANL84 ALL84 43.700
H3088 410 - - 228 520 60 77 ANL88 ALL88 65.200
H3092 430 - - 234 540 60 77 ANL92 ALL92 69.500
H3096 450 - - 237 560 60 77 ANL96 ALL96 73.300
H30/500 470 - - 247 580 68 85 ANL100 ALL100 81.800
  • CS adapter sleeves are supplied completely with lock nuts and lock washers or lock plates.
  • Adapter for these bores are designated HE/HA.
  • Adapter with the dimension C1 is equipped with a locking device as shown in the right illustration.
