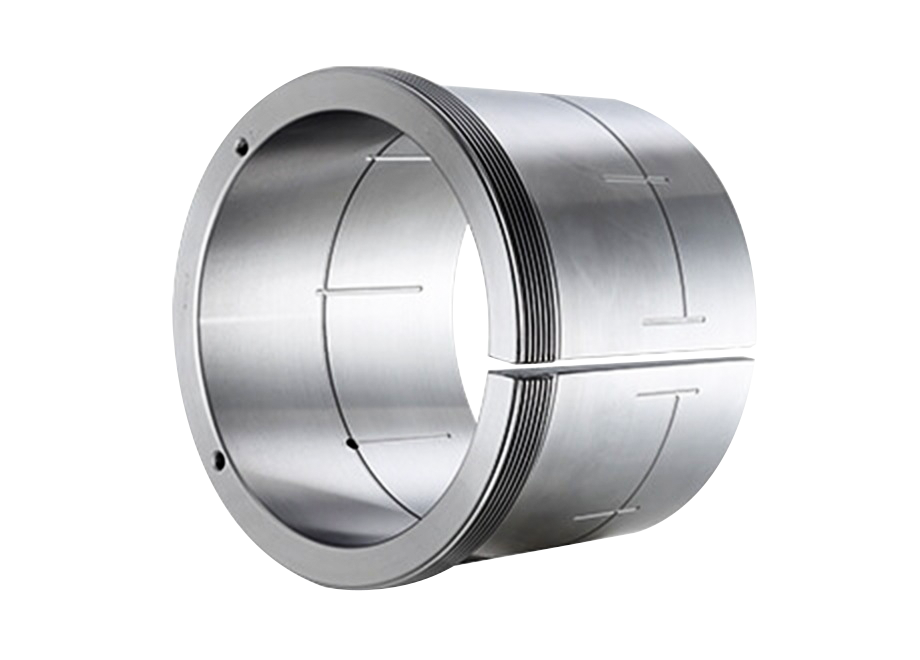

AOH32 Hydraulic Withdrawal Sleeves

https://www.chin-sing.com/web/image/product.template/46/image_1920?unique=679f33d

Length: 124-393 mm

AOH32 Spec Sheet

  • ​

This combination does not exist.

Specification Applications Related Products

Specification

HYDRAULIC d1LL1)1betThread 2)AppropriateWeight
WITHDRAWAL　　　　Ro　　D1Withdrawal　
SLEEVES No.mmmmmmmm　mmmmmmNut No.kg
AOH3232 150 124 130 20 M6 4.5 8 M180*3 AN36 4.080
AOH3234 160 134 140 24 M6 4.5 8 M190*3 AN38 4.800
AOH3236 170 140 146 24 M6 4.5 8 M200*3 AN40 5.320
AOH3238 180 145 152 25 M6 4.5 8 Tr210*4 HN42 5.900
AOH3240 190 153 160 25 M6 4.5 8 Tr220*4 HN44 6.680
AOH3260 280 228 236 34 G 1/8 8.5 12 Tr330*5 HN66 26.000
AOH3264 300 246 254 36 G 1/8 8.5 12 Tr350*5 HN70 30.600
AOH3268 320 264 273 38 G 1/8 8.5 12 Tr370*5 HN74 35.800
AOH3272 340 274 283 40 G 1/8 8.5 12 Tr400*5 HN80 41.600
AOH3276 360 284 294 42 G 1/8 8.5 12 Tr420*5 HN84 46.300
AOH3280 380 302 312 44 G 1/8 8.5 12 Tr440*5 HN88 52.500
AOH3284 400 321 331 46 G 1/8 8.5 12 Tr460*5 HN92 59.700
AOH3288 420 330 341 48 G 1/8 8.5 12 Tr480*5 HN96 64.800
AOH3292 440 349 360 50 G 1/8 8.5 12 Tr510*6 HN102 75.200
AOH3296 460 364 376 52 G 1/8 8.5 12 Tr530*6 HN106 83.100
AOH32/500 480 393 405 54 G 1/8 8.5 12 Tr550*6 HN110 94.700
  • Dimension L1 decreases as the Hydraulic withdrawal sleeve is driven in during mounting.
  • M means metric thread. Tr means 30°, trapezoid thread and the digits are outside diameter of thread and pitch.
