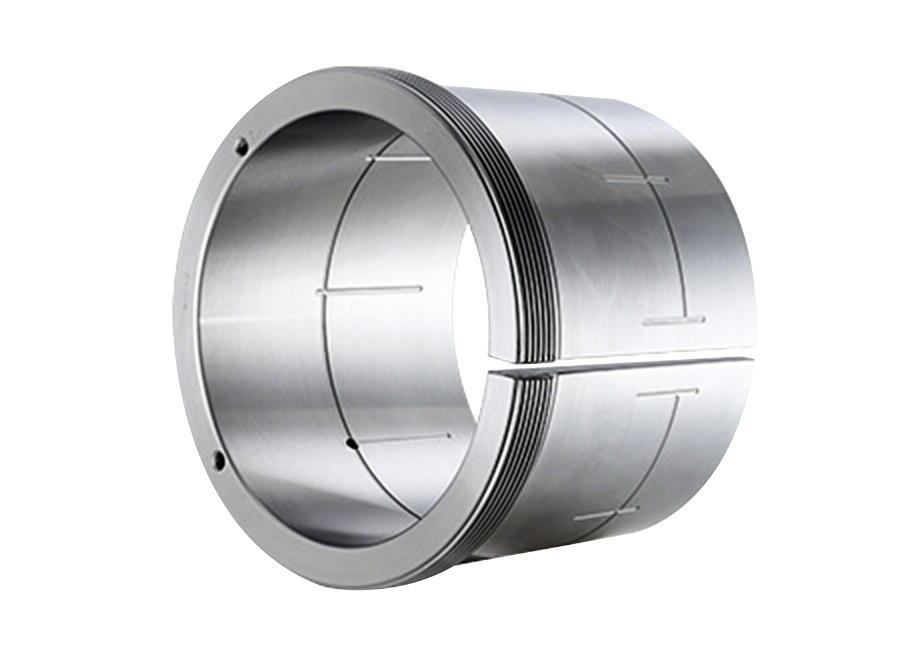

AOH240 Hydraulic Withdrawal Sleeves

https://www.chin-sing.com/web/image/product.template/48/image_1920?unique=5b0a9fb

Length: 138-253 mm

AOH240 Spec Sheet

  • ​

This combination does not exist.

Specification Applications Related Products

Specification

HYDRAULIC d1LL1)1betThread 2)AppropriateWeight
WITHDRAWAL　　　　Ro　　D1Withdrawal　
SLEEVES No.mmmmmmmm　mmmmmmNut No.kg
AOH24044 200 138 152 20 M6 8 8 Tr230*4 HN46 8.250
AOH24048 220 138 153 20 M6 8 8 Tr250*4 HN50 9.000
AOH24052 240 162 178 22 M6 8 8 Tr270*4 HN54 11.800
AOH24056 260 162 179 22 M6 8 8 Tr290*4 HN58 12.800
AOH24060 280 184 202 24 M6 8 8 Tr310*5 HN62 15.500
AOH24064 300 184 202 24 M6 8 8 Tr330*5 HN66 16.600
AOH24068 320 206 225 26 G 1/8 8.5 12 Tr360*5 HNL72 21.700
AOH24072 340 206 226 26 G 1/8 8.5 12 Tr380*5 HNL76 22.700
AOH24076 360 208 228 28 G 1/8 8.5 12 Tr400*5 HNL80 23.700
AOH24080 380 228 248 28 G 1/8 8.5 12 Tr420*5 HNL84 27.100
AOH24084 400 230 252 30 G 1/8 8.5 12 Tr440*5 HNL88 29.000
AOH24088 420 242 264 30 G 1/8 8.5 12 Tr460*5 HNL92 31.900
AOH24092 440 250 273 32 G 1/8 8.5 12 Tr480*5 HNL96 34.700
AOH24096 460 250 273 32 G 1/8 8.5 12 Tr500*5 HNL100 36.600
AOH240/500 480 253 276 35 G 1/8 8.5 12 Tr530*6 HNL106 43.900
  • Dimension L1 decreases as the Hydraulic withdrawal sleeve is driven in during mounting.
  • M means metric thread. Tr means 30°, trapezoid thread and the digits are outside diameter of thread and pitch.
