  4. ANL(HM30) Bearing Lock Nuts

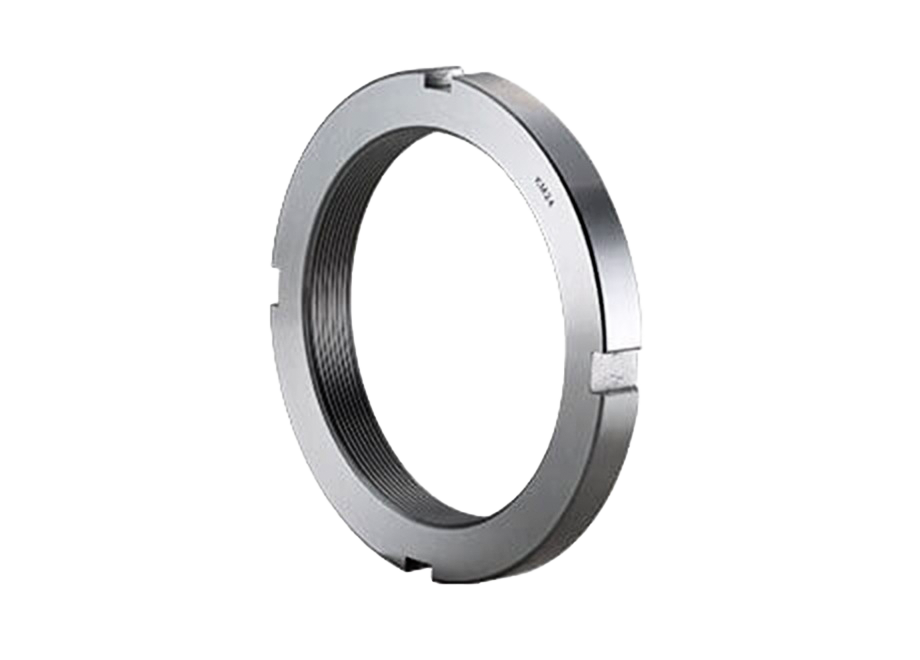

ANL(HM30) Bearing Lock Nuts

https://www.chin-sing.com/web/image/product.template/56/image_1920?unique=340bf60

Thread size: Tr220*4-Tr480*5

ANL(HM30) Spec Sheet

  • ​

This combination does not exist.

Specification Applications Related Products

Specification

Lock Nuts No.D1

Thread1)		D3

mm		D4

mm		S

mm		T

mm		D6

mm		Bn

mm		i

mm		Tapped Holes
Threads		Dp
mm		Suitable Lock Plates No.Weight

kg
ANL44 Tr220*4 260 242 20 9 222 30 12 M6*1 229 ALL44 3.090
ANL48 Tr240*4 290 270 20 10 242 34 15 M8*1.25 253 ALL48 5.160
ANL52 Tr260*4 310 290 20 10 262 34 15 M8*1.25 273 ALL52 5.670
ANL56 Tr280*4 330 310 24 10 282 38 15 M8*1.25 293 ALL56 6.780
ANL60 Tr300*4 360 336 24 12 302 42 15 M8*1.25 316 ALL60 9.620
ANL64 Tr320*5 380 356 24 12 322.5 42 15 M8*1.25 335 ALL64 9.940
ANL68 Tr340*5 400 376 24 12 342.5 45 15 M8*1.25 355 ALL68 11.700
ANL72 Tr360*5 420 394 28 13 362.5 45 15 M8*1.25 374 ALL72 12.000
ANL76 Tr380*5 450 422 28 14 382.5 48 18 M10*1.5 398 ALL76 14.900
ANL80 Tr400*5 470 442 28 14 402.5 52 18 M10*1.5 418 ALL80 16.900
ANL84 Tr420*5 490 462 32 14 422.5 52 18 M10*1.5 438 ALL84 17.400
ANL88 Tr440*5 520 490 32 15 442.5 60 21 M12*1.75 462 ALL88 26.200
ANL92 Tr460*5 540 510 32 15 462.5 60 21 M12*1.75 482 ALL92 27.000
ANL96 Tr480*5 560 530 36 15 482.5 60 21 M12*1.75 502 ALL96 28.300
ANL100 Tr500*5 580 550 36 15 502.5 68 21 M12*1.75 522 ALL100 33.600
  • Tr means 30°, trapezoid thread and the digits are major diameter of thread and pitch.
  • NOTE: The specifications of ANL can be applied for HM30.
