GUK Self Locking Nuts

GUK Self Locking Nuts
GUK Self Locking Nuts
GUK Self Locking Nuts
Product Name : GUK Self Locking Nuts
Product Description

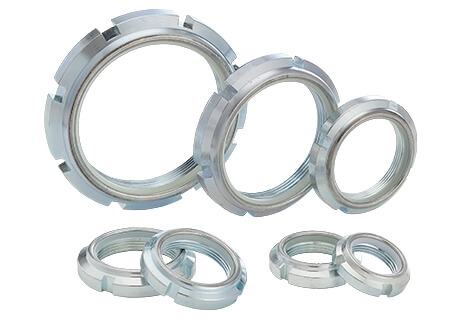

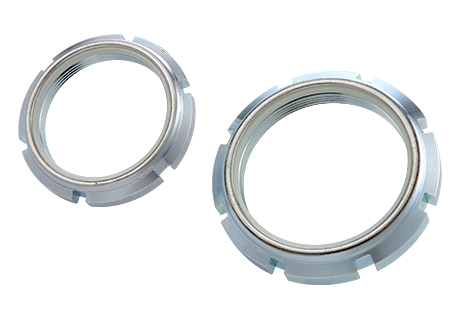

What Is GUK Self Locking Nut?

GUK self locking nuts are self-locking due to their nylon PA6 insert. Therefore, they can also be used as retaining nuts and can be used multiple times. The thread series mainly corresponds to cylindrical bearing slotted lock nuts according to DIN 981.

How GUK Nuts Work?

GUK self locking nuts add a nylon insert that sits on top of the nut to deform on the mating thread and catch the bolt or stud. This provides a locking function that creates resistance - or primary torque - to lock the nut in place and resist vibration.

In addition to the nylon PA6 self-locking feature, GUK self locking nuts are equipped with four equally spaced grooves on the outside diameter of the nut, which allow a hook wrench to easily tighten or loosen the nut. These self-locking nuts are not suitable for high temperature over 100 degree applications.

As a GUK nut supplier, we provide the following specs - GUK00, GUK01, GUK02, GUK03, GUK04, GUK05, GUK06, GUK07, GUK08, GUK09, GUK10, GUK11, GUK12, GUK13, GUK14, GUK15, GUK16, GUK17, GUK18, GUK19, and GUK20. If you need more GUK self lock nut info, please contact us immediately.

Material: Nut-SS400  Elastic Ring: PA6

SUITABLE MAX TEMPERATURE: 100 degree.

Finish: Zinc plated/ C. TOLERANCE 4H

Inquiry
Product Introduction

Product Model : GUK

proimages/product/04Self_Locking_Nuts/04-01_GUK.jpg

Material: SS400

Nylon material: PA6

Standards: M10-M100.

Part NoThread*pitchH/mmh/mmD/mmD2/mmt/mms/mmNo.of grooves for hookKg
GUK00 M10*0.75 7.4 4.5 18 15 15 3 4 0.009
GUK01 M12*1.0 7.4 4.5 21 18 18 3 4 0.009
GUK02 M15*1.0 8.4 5.5 24 21 21 4 4 0.012
GUK03 M17*1.0 8.4 5.5 28 24 24 4 4 0.018
GUK04 M20*1.0 9.4 6.5 32 27 27 4 4 0.025
GUK05 M25*1.5 10.3 6.5 38 33 33 5 4 0.035
GUK06 M30*1.5 10.9 6.5 44 38 38 5 4 0.046
GUK07 M35*1.5 11.1 7.0 50 44 44 5 4 0.062
GUK08 M40*1.5 12.1 8.2 56 50 50 6 4 0.080
GUK09 M45*1.5 12.1 8.2 62 55 55 6 4 0.095
GUK10 M50*1.5 12.7 8.5 68 61 61 6 4 0.130
GUK11 M55*2.0 13.2 8.5 75 68 68 7 6 0.160
GUK12 M60*2.0 13.2 8.5 80 73 73 7 6 0.170
GUK13 M65*2.0 14.3 9.5 85 77 77 7 6 0.185
GUK14 M70*2.0 14.3 9.5 92 84 84 8 6 0.23
GUK15 M75*2.0 15.3 10.5 98 89 89 8 6 0.27
GUK16 M80*2.0 16.3 11.5 105 96 96 8 8 0.34
GUK17 M85*2.0 17.3 12.5 110 100 100 8 8 0.39
GUK18 M90*2.0 17.5 12.5 120 110 110 10 8 0.54
GUK19 M95*2.0 18.5 13.5 125 115 115 10 8 0.6
GUK20 M100*2.0 19.5 14.5 130 120 120 10 8 0.68
  • Unnecessary to add any tooth lock washer.
  • Unnecessary to mill a keyway on the shaft and shorten its assembled time.
  • Allow to be used after repeatedly screwing.
  • Bearing any vibration and ensuring the integrated resistance when not tightened.
  • The surface is galvanized to prevent rust.
