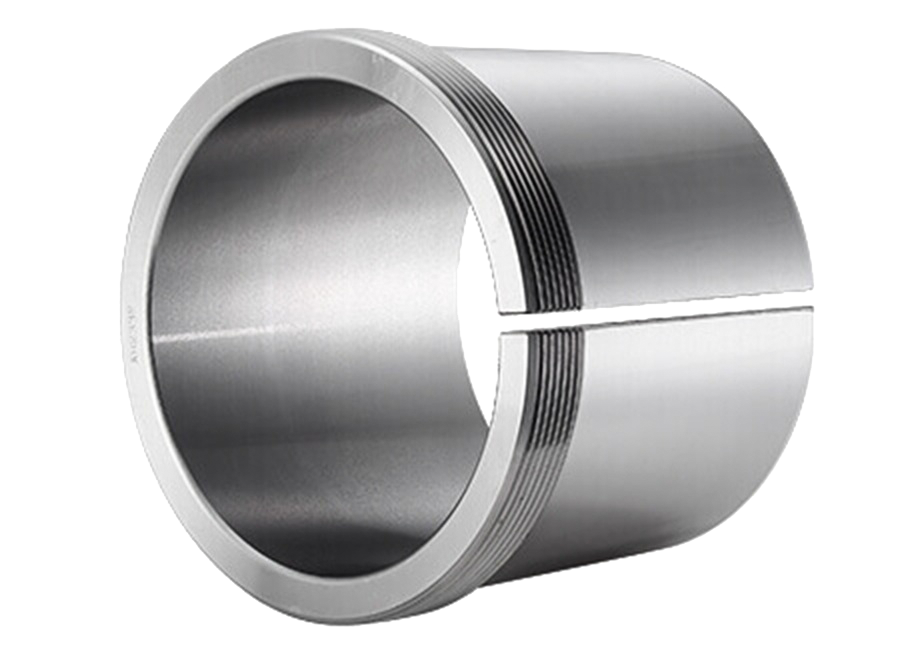

AH31 退卸套筒

長度: 64-313 mm

AH31 Spec Sheet

此組合不存在。

規格表

Withdrawal Sleeves No.	d1 mm	L mm	L¹⁾₁ mm	b mm	Thread²⁾D1 mm	Appropriate Withdrawal Nut No.	Weight kg
AHX3120	95	64	68	11	M110*2	AN22	0.650
AHX3122	105	68	72	11	M120*2	AN24	0.760
AHX3124	115	75	79	12	M130*2	AN26	0.950
AHX3126	125	78	82	12	M140*2	AN28	1.080
AHX3128	135	83	88	14	M150*2	AN30	1.280
AHX3130	145	96	101	15	M165*3	AN33	1.790
AH3132	150	103	108	16	M180*3	AN36	3.210
AH3134	160	104	109	16	M190*3	AN38	3.400
AH3136	170	116	122	19	M200*3	AN40	4.220
AH3138	180	125	131	20	Tr210*4	HN42	4.890
AH3140	190	134	140	21	Tr220*4	HN44	5.490
AH3144	200	145	151	23	Tr240*4	HN48	10.400
AH3148	220	154	161	25	Tr260*4	HN52	12.000
AH3152	240	172	179	26	Tr290*4	HN58	16.200
AH3156	260	175	183	28	Tr310*5	HN62	17.500
AH3160	280	192	200	30	Tr330*5	HN66	20.800
AH3164	300	209	217	31	Tr350*5	HN70	24.500
AH3168	320	225	234	33	Tr370*5	HN74	29.000
AH3172	340	229	238	35	Tr400*5	HN80	33.000
AH3176	360	232	242	36	Tr420*5	HN84	35.700
AH3180	380	240	250	38	Tr440*5	HN88	39.500
AH3184	400	266	276	40	Tr460*5	HN92	46.500
AHX3188	420	270	281	42	Tr480*5	HN96	49.800
AHX3192	440	285	296	43	Tr510*6	HN102	57.900
AHX3196	460	295	307	45	Tr530*6	HN106	63.100
AHX31/500	480	313	325	47	Tr550*6	HN110	70.900
