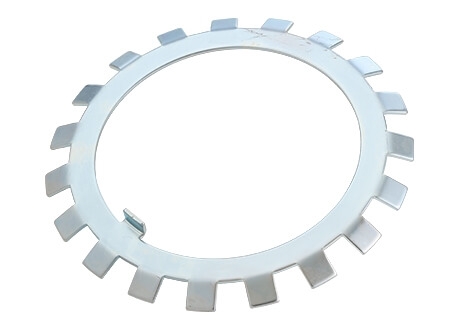

Inch Lock Washer

Inch Lock Washer
Product Name : Inch Lock Washer
Product Description

Inch Lock washer : W00-W44 W022-W044
CS locking washers are made of SPCC/SPHC metal materials. Surface treatment: Zinc plated 5um, Cr3+. The purpose in using them is to keep nuts and bolts away from vibrating or friction loose. There are many different shapes and sizes, but they all try to achieve the same goal. When properly applied, lock washer provides an easy, basic way to keep threaded fasteners steady over a long period of time.

Chin Sing has abundant experience in lock washer production and is viewed as one of the professional inch locking washer manufacturers. We are looking for an inch lock washer agent, and locking washer distributor. If you are interested in our products, please contact us!

Inch Lock Washer – W00~W44 series, Inch Lock Washer W022~W044 series

Inquiry
Product Introduction

Product Model : W-00

TABLE 5.1-PART2

LOCK NUTS DIMENSIONS

Inch Design

proimages/product/03SNP_SNW/03-03_W-00.jpg

Dimensions in inches

Lcok Washers No.Bore R nom.Face Diameter
E
min.		Diameter Over Tangs
B
max.		Key Width S
max.		Inside Dimension X
min.
W-00
W-000		No
of Tangs		Project V
min.
W-00		Tang
Width
T
max.		Tang Thickness Q
min.
W-00W-000W-00W-000W-00W-000W-00W-000W-00W-000
W-00 0.406 0.625   0.875   0.120   0.334 9 0.062 0.120   0.032
W-01 0.484 0.719   1.016   0.120   0.412 9 0.062 0.120   0.032
W-02 0.601 0.813   1.156   0.120   0.529 11 0.062 0.120   0.032
W-03 0.679 0.938   1.328   0.120   0.607 11 0.062 0.120   0.032
W-04 0.801 1.125   1.531   0.176   0.729 11 0.062 0.166   0.032
W-05 0.989 1.281   1.719   0.176   0.909 13 0.094 0.166   0.040
W-06 1.193 1.500   1.922   0.176   1.093 13 0.094 0.166   0.040
W-07 1.396 1.813   2.250   0.176   1.296 15 0.094 0.166   0.040
W-08 1.583 2.000   2.469   0.290   1.475 15 0.094 0.234   0.048
W-09 1.792 2.281   2.734   0.290   1.684 17 0.125 0.234   0.048
W-10 1.992 2.438   2.922   0.290   1.884 17 0.125 0.234   0.048
W-11 2.182 2.656   3.109   0.290   2.069 17 0.125 0.234   0.053
W-12 2.400 2.844   3.344   0.290   2.267 17 0.125 0.234   0.053
W-13 2.588 3.063   3.578   0.290   2.455 19 0.125 0.234   0.053
W-14 2.791 3.313   3.828   0.290   2.658 19 0.188 0.234   0.053
W-15 2.973 3.563   4.109   0.290   2.831 19 0.188 0.328   0.062
W-16 3.177 3.844   4.375   0.353   3.035 19 0.188 0.328   0.062
W-17 3.395 4.031   4.625   0.353   3.253 19 0.188 0.328   0.062
W-18 3.582 4.281   4.938   0.353   3.418 19 0.188 0.328   0.084
W-19 3.800 4.563   5.219   0.353   3.636 19 0.188 0.328   0.084
W-20 3.988 4.813   5.500   0.353   3.809 19 0.250 0.328   0.084
W-21 4.192 5.000   5.703   0.353   4.013 19 0.250 0.390   0.084

W-22 W-022

 4.395 5.281 4.921 6.063 5.688 0.353 0.350 4.185 19 0.250 0.390 0.390 0.115 0.115
W-24 W-024 4.801 5.688 5.333 6.469 6.188 0.353 0.350 4.591 19 0.250 0.390 0.390 0.115 0.115
W-26 W-026 5.191 6.188 5.723 7.031 6.625 0.435 0.469 4.961 19 0.250 0.520 0.390 0.115 0.115
W-28 W-028 5.582 6.531 6.129 7.438 7.094 0.590 0.594 5.352 19 0.250 0.520 0.390 0.115 0.115
W-30 W-030 5.983 7.063 6.708 8.063 7.719 0.590 0.594 5.722 19 0.313 0.520 0.520 0.146 0.115
W-32 W-032 6.389 7.438 7.114 8.438 8.156 0.590 0.594 6.128 19 0.313 0.520 0.520 0.146 0.115
W-34 W-034 6.764 8.031 7.508 9.063 8.594 0.715 0.719 6.503 19 0.313 0.520 0.520 0.146 0.115
W-36 W-036 7.171 8.375 7.899 9.438 9.000 0.715 0.719 6.910 19 0.313 0.645 0.520 0.146 0.115
W-38 W-038 7.577 8.781 8.290 9.875 9.438 0.715 0.719 7.316 19 0.313 0.645 0.520 0.146 0.115
W-40 W-040 7.982 9.156 8.774 10.313 9.969 0.840 0.844 7.721 19 0.313 0.645 0.645 0.146 0.115
W-44 W-044 8.701 9.875 9.570 11.438 10.406 0.940 0.945 8.327 19   0.878 0.770 0.146 0.115
