Product Name : Prevailing Torque Bearing Nut With Metal Insert/Bearing Lock Nuts
Product Description

High Quality AN00-AN20 Locknuts from Taiwan

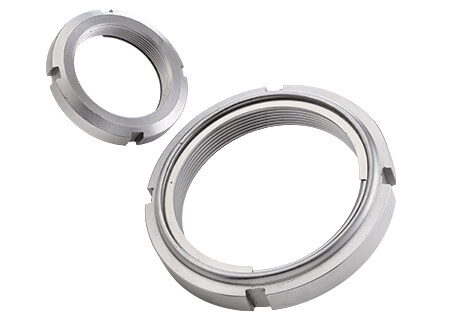

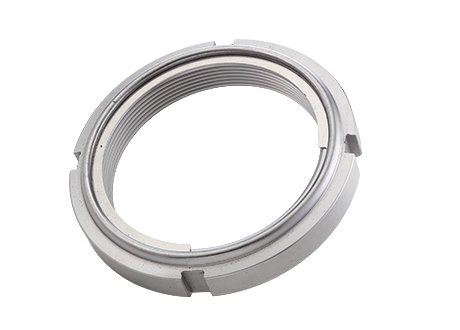

AN00-AN20 prevailing torque bearing nut with metal Insert adds the special tightly-locking ring of spring SUS301 steel according to the engineering principles. When used, the ring of spring SUS301 steel is clipped and pressed into the slot. The performance of shockproof and anti-loosening are 100%, and during repeated use, it would not affect the thread of the screw and the tightly locking ring of spring SUS301 steel. Prevailing Torque Bearing Nut With Metal Insert can resist variations in temperature from -30℃ to +300℃ and erosion of all kinds of oil such as gasoline. petroleum. alcohol, etc.

Why You Should Choose AN00-AN20 Bearing Lock Nuts?

The advantages of prevailing torque bearing nut with metal insert include:

1. no need to use a sun washer

2. no need to process the shaft groove

3. reduce assembling time

4. ensure the nut tightly

5. allow being used repeatedly

6. anti-vibration

7. surface galvanized, and anti-rust.

Its characteristics remove the traditional operation method, extend the life cycle of the machine, increase work efficiency, and improve the safety of the machine. There are 3 different options of material available: SAE1008 low carbon steel, C1045 medium carbon steel, and SUS304 stainless steel.

CHIN SING prevailing torque bearing nut with metal insert is precisely manufactured by CNC machine, if you are looking for the highest quality AN00-AN20 bearing nut with metal insert or other parts like GUK nuts and metric lock washers, please contact us to learn more about our product information.

Product Introduction

Product Model : Prevailing Torque Bearing Nut With Metal Insert


proimages/product/02Lock_Nuts/02-01Prvailing_Toqure_Bearing_Nuts.jpg

Material option:

SAE1008 Low Carbon Steel

C1045 Medium Carbon Steel

SUS304 Stainless Steel


No.Thread(d*p)D1D2ACBhHKg
AN00 M 10*0.75 18 0-0.2 13 0+0.2 14
(14.4)
0-0.2 2
(1.8)
3 +0.1 4 5.2 +0.3 0.007
AN01 M 12*1 22 0-0.2 17 0+0.2 18
(18.4)
0-0.2 2
(1.8)
3 +0.1 4 5.4 +0.3 0.0075
AN02 M 15*1 25 0-0.5 21 0-0.5 21
(21.4)
0-0.5 2
(1.8)
+0.2 5 6.5 +0.5 0.010
AN03 M 17*1 28 0-0.5 24 0-0.5 24
(24.2)
0-0.5 2
(1.9)
4 +0.2 5 6.4 +0.5 0.014
AN04 M 20*1 32 0-0.5 26 0-0.5 28
(28.4)
0-0.5 2
(1.8)
4 +0.2 6 7.7 +0.5 0.022
AN05 M 25*1.5 38 0-0.5 32 0-0.5 34 0-0.5 2 5 +0.2 7 9.1 +0.5 0.035
AN06 M 30*1.5 45 0-0.5 38 0-0.5 41 0-0.5 2 5 +0.2 7 9.1 +0.8 0.048
AN07 M35*1.5 52 0-0.5 44 0-0.5 48 0-0.5 2 5 +0.2 8 10.2 +0.8 0.075
AN08 M 40*1.5 58 0-0.5 50 0-0.5 53 0-0.5 2.5 6 +0.2 9 11.2 +0.8 0.098
AN09 M 45*1.5 65 0-0.5 56 0-0.5 60 0-0.5 2.5 6 +0.2 10 12.5 +1.0 0.14
AN10 M 50*1.5 70 0-0.5 61 0-0.5 65 0-0.5 2.5 6 +0.2 11 13.5 +1.0 0.167
AN11 M 55*2 75 0-0.5 67 0-0.5 69 0-0.5 3 7 +0.2 11 13.5 +1.0 0.17
AN12 M 60*2 80 0-0.5 73 0-0.5 74 0-0.5 3 7 +0.2 11 13.5 +1.0 0.195
AN13 M 65*2 85 0-0.5 79 0-0.5 79 0-0.5 3 7 +0.2 12 15 +1.5 0.224
AN14 M 70*2 92 0-0.5 85 0-0.5 85 0-0.5 3.5 8 +0.2 12 15 +1.5 0.292
AN15 M 75*2 98 0-0.5 90 0-0.5 91 0-0.5 3.5 8 +0.2 13 15.8 +1.5 0.33
AN16 M 80*2 105 0-0.5 95 0-0.5 98 0-0.5 3.5 8 +0.2 15 18.6 +1.5 0.42
AN17 M 85*2 110 0-0.5 102 0-0.75 103 0-0.5 3.5 8 +0.2 16 19.2 +1.5 0.505
AN18 M 90*2 120 0-0.5 108 0 -0.75 112 0-0.5 4 10 +0.3 16 20.3 +1.5 0.69
AN19 M 95*2 125 0-0.5 113 0 -0.75 117 0-0.5 4 10 +0.3 17 21.3 +1.5 0.755
AN20 M 100*2 130 0-0.5 120 0 -0.75 122 0-0.5 4 10 +0.3 18 22.3 +1.5 0.855
