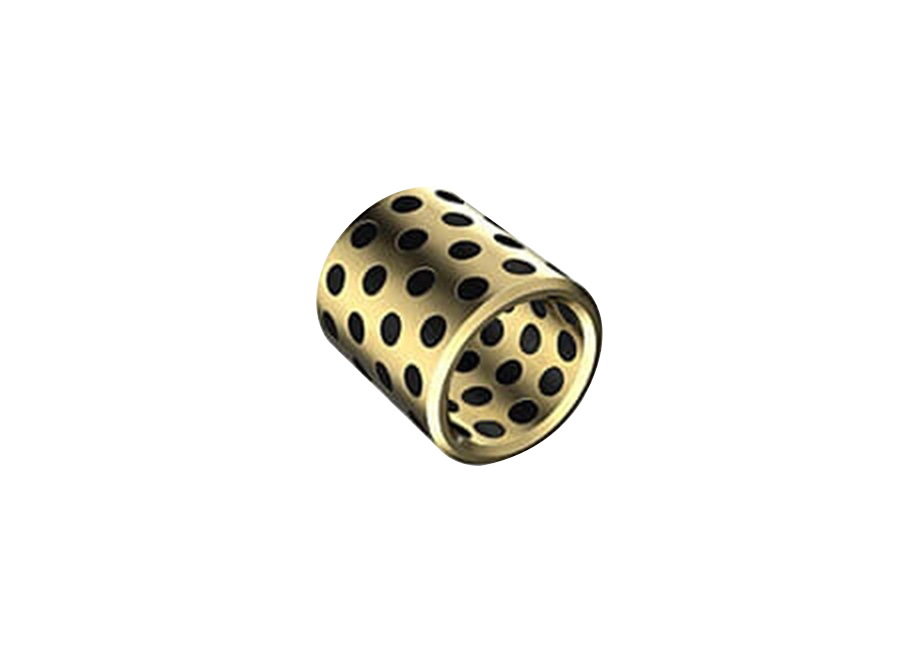

SPF 無給油ブッシュー銅タイプ

軸径: 10-120

SPF Spec Sheet

仕様

Shaft Diameter	Dimension (mm)							Length (Tolerance )												ID	OD
	ID		OD		Flange			10	15	20	25	30	35	40	50	60	67.5	80	100
	Ød	TOL	ØD	TOL	ØF	Thickness	TOL	SPF	SPF	SPF	SPF	SPF	SPF	SPF	SPF	SPF	SPF	SPF	SPF
10	10	+0.04	14	+0.034	22	2	0	-1010	-1015	-1020										10	14
10	10	+0.025	14	+0.023	22	2	-0.1	-1010	-1015	-1020										10	14
12	12	+0.05	18	+0.034	25	3	"	-1210	-1215	-1220	-1225	-1230								12	18
12	12	+0.032	18	+0.023	25		"	-1210	-1215	-1220	-1225	-1230								12	18
13	13	+0.05	19	+0.041	26	3	"		-1315	-1320										13	19
13	13	+0.032	19	+0.028	26		"		-1315	-1320										13	19
14	14	+0.05	20	+0.041	27	3	"		-1415	-1420	-1425									14	20
14	14	+0.032	20	+0.028	27		"		-1415	-1420	-1425									14	20
15	15	+0.05	21	+0.041	28	3	"	-1510	-1515	-1520	-1525	-1530								15	21
15	15	+0.032	21	+0.028	28		"	-1510	-1515	-1520	-1525	-1530								15	21
16	16	+0.05	22	+0.041	29	3	"		-1615	-1620	-1625	-1630	-1635	-1640						16	22
16	16	+0.032	22	+0.028	29		"		-1615	-1620	-1625	-1630	-1635	-1640						16	22
20	20	+0.061	30	+0.041	40	5	"		-2015	-2020	-2025	-2030		-2040						20	30
20	20	+0.04	30	+0.028	40		"		-2015	-2020	-2025	-2030		-2040						20	30
25	25	+0.061	35	+0.05	45	5	"		-2515	-2520	-2525	-2530	-2535	-2540	-2550					25	35
25	25	+0.04	35	+0.034	45		"		-2515	-2520	-2525	-2530	-2535	-2540	-2550					25	35
30	30	+0.061	40	+0.05	50	5	"			-3020	-3025	-3030	-3035	-3040	-3050					30	40
30	30	+0.04	40	+0.034	50		"			-3020	-3025	-3030	-3035	-3040	-3050					30	40
31.5	31.5	+0.075	40	+0.05	50	5	"			-3120		-3130	-3135	-3140						31.5	40
31.5	31.5	+0.05	40	+0.034	50		"			-3120		-3130	-3135	-3140						31.5	40
35	35	+0.075	45	+0.05	60	5	"			-3520	-3525	-3530	-3535	-3540	-3550					35	45
35	35	+0.05	45	+0.034	60		"			-3520	-3525	-3530	-3535	-3540	-3550					35	45
40	40	+0.075	50	+0.05	65	5	"			-4020	-4025	-4030	-4035	-4040	-4050					40	50
40	40	+0.05	50	+0.034	65		"			-4020	-4025	-4030	-4035	-4040	-4050					40	50
45	45	+0.075	55	+0.073	70	5	"					-4530	-4535	-4540	-4550	-4560				45	55
45	45	+0.05	55	+0.041	70		"					-4530	-4535	-4540	-4550	-4560				45	55
50	50	+0.075	60	+0.073	75	5	"					-5030	-5035	-5040	-5050	-5060				50	60
50	50	+0.05	60	+0.041	75		"					-5030	-5035	-5040	-5050	-5060				50	60
55	55	+0.09	65	+0.073	80	5	"							-5540		-5560				55	65
55	55	+0.06	65	+0.041	80		"							-5540		-5560				55	65
60	60	+0.09	75	+0.062	90	7.5	"							-6040	-6050	-6060		-6080		60	75
60	60	+0.06	75	+0.043	90	7.5	"							-6040	-6050	-6060		-6080		60	75
63	63	+0.09	75	+0.062	85	7.5	"										-6367			63	75
63	63	+0.06	75	+0.043	85	7.5	"										-6367			63	75
70	70	+0.09	85	+0.083	105	7.5	"								-7050			-7080		70	85
70	70	+0.06	85	+0.051	105	7.5	"								-7050			-7080		70	85
75	75	+0.09	90	+0.083	110	7.5	"									-7560				75	90
75	75	+0.06	90	+0.051	110	7.5	"									-7560				75	90
80	80	+0.09	100	+0.083	120	10	"									-8060		-8080	-80100	80	100
80	80	+0.06	100	+0.051	120	10	"									-8060		-8080	-80100	80	100
90	90	+0.107	110	+0.076	130	10	"									-9060		-9080		90	110
90	90	+0.072	110	+0.054	130	10	"									-9060		-9080		90	110
100	100	+0.107	120	+0.076	150	10	"											-10080	-100100	100	120
100	100	+0.072	120	+0.054	150	10	"											-10080	-100100	100	120
120	120	+0.107	140	+0.088	170	10	"											-12080	-120100	120	140
120	120	+0.072	140	+0.063	170	10	"											-12080	-120100	120	140

SPF Spec Sheet

Technical Data
Material	CuZn24AL6
Hardness	HB230-270
Coefficient of friction(μ)	<0.16
Max. Temp.	300℃
Max. dynamic load	100 N/mm²
Max. speed(Dry)	0.4 m/s
Max. speed (Lubrication)	5 m/s
PV limit	3.8 N/mm² *m/s
