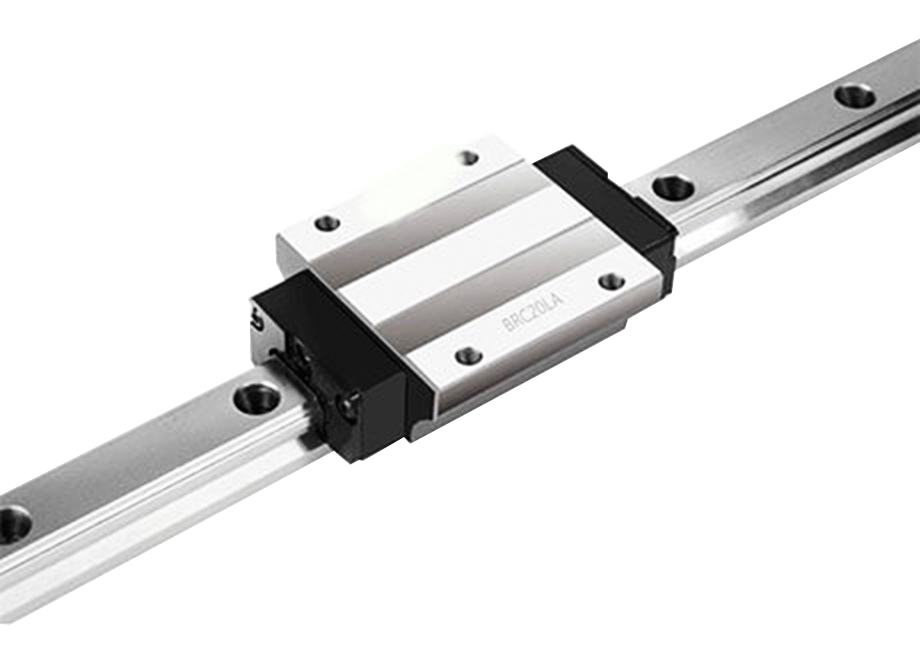

リニアガイド Linear Guide-Non flanged-extended length

ブロック長さ: 66-163 mm

この組み合わせは存在しません。

仕様

Item No.	Assembly				Block							Rail
	mm				mm							mm
	H	W	W2	E	L	BxJ	MQxℓ	L1	Oil hole	T1	(N)	W1	H1	F	dxDxh
BRC15R0	28	34	9.5	4.6	66	26x26	M4x6	40	Ø3	8.3	5	15	14	60	4.5x7.5x5.8
BRD15R0	28	34	9.5	4.6	56	26x26	M4x6	40	Ø3	8.3	5	15	14	60	4.5x7.5x5.8
BRC20R0	30	44	12	5	77.8	32x56	M5x8	48.8	M6x1	7	15.6	20	18	60	6x9.5x9
BRD20R0					67.8	32x56		48.8
BRC20LR					92.4	32x50		63.4
BRD20LR					82.4	32x50		63.4
BRC25R0	40	48	12.5	7	88	35x35	M6x10	57	M6x1	11.8	15.6	23	22	60	7x11x9.5
BRD25R0					78	35x35		57
BRC25LR					110.1	35x50		79.1
BRD25LR					100.1	35x50		79.1
BRC30R0	45	60	16	9	109	40x40	M8x13	72	M6x1	10	15.6	28	26	80	9x14x12.5
BRD30R0					99	40x40		72
BRC30LR					131.3	40x60		94.3
BRD30LR					121.3	40x60		94.3
BRD35R0	55	70	18	9.5	109	50x50	M8x13	80	M6x1	15	15.6	34	29	80	9x14x12.5
BRD35LR	55	70	18	9.5	134.8	50x72	M8x13	105.8	M6x1	15	15.6	34	29	80	9x14x12.5
BRD45R0	70	86	20.5	14	138.2	60x60	M10x16.5	105	M8x1	18.5	16	45	38	105	14x20x17.5
BRD45LR	70	86	20.5	14	163	60x80	M10x16.5	129.8	M8x1	18.5	16	45	38	105	14x20x17.5

Item No.	Dimension(mm)		Basic Load Rating(Kgf)		Static Moment(Kgf*m)			Weight
	Dimension(mm)		Basic Load Rating(Kgf)		Static Moment(Kgf*m)			Weight
	Lmax	G	C	CO	Mx	My	Mz	Block(Kg)	Rail(Kg/m)
BRC15R0	4000	20	850	1350	10.1	6.8	6.8	0.19	1.4
BRD15R0	4000	20	850	1350	10.1	6.8	6.8	0.19	1.4
BRC20R0	4000	20	1400	2400	24	14.6	14.6	0.31	2.6
BRD20R0			1400	2400	24	14.6	14.6	0.31
BRC20LR			1650	3000	30	23.8	23.8	0.47
BRD20LR			1650	3000	30	23.8	23.8	0.47
BRC25R0	4000	20	1950	3200	36.8	22.8	22.8	0.45	3.6
BRD25R0			1950	3200	36.8	22.8	22.8	0.45
BRC25LR			2600	4600	52.9	45.5	45.5	0.56
BRD25LR			2600	4600	52.9	45.5	45.5	0.56
BRC30R0	4000	20	2850	4800	67.2	43.2	43.2	0.91	5.2
BRD30R0			2850	4800	67.2	43.2	43.2	0.91
BRC30LR			3600	6400	89.6	75.4	75.4	1.2
BRD30LR			3600	6400	89.6	75.4	75.4	1.2
BRD35R0	4000	20	3850	6200	105.4	62	62	1.5	7.2
BRD35LR	4000	20	4800	8300	141.1	109.8	109.8	1.9	7.2
BRD45R0	4000	22.5	6500	10500	236.3	137.8	137.8	2.3	12.3
BRD45LR	4000	22.5	7700	13000	292.5	210.9	210.9	2.8	12.3
