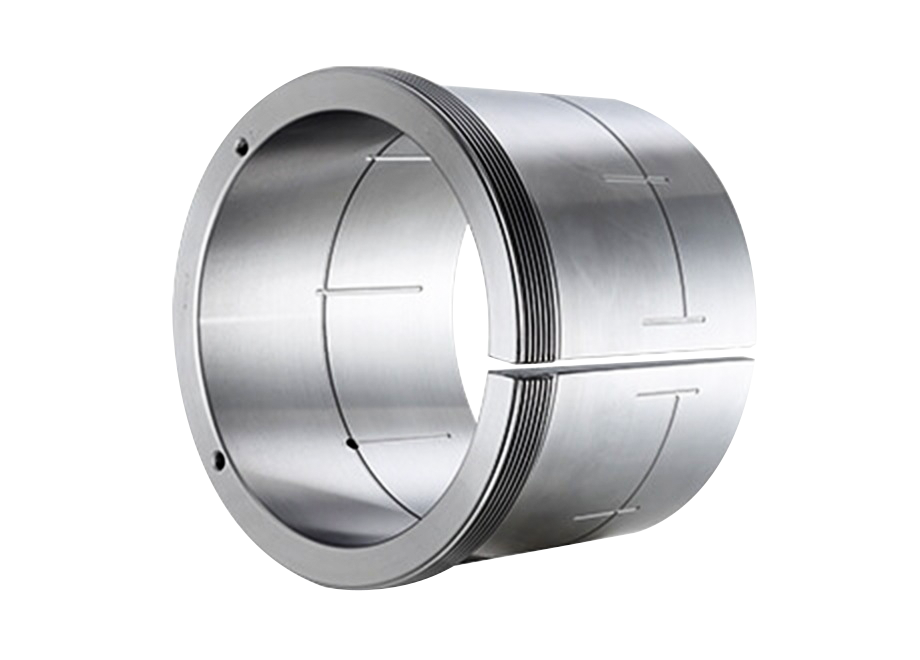

AOH31 油圧取外しスリーブ

長さ: 103-313 mm

AOH31 Spec Sheet

この組み合わせは存在しません。

仕様

HYDRAULIC	d1	L	L¹⁾₁	b		e	t	Thread ²⁾	Appropriate	Weight
WITHDRAWAL					Ro			D1	Withdrawal
SLEEVES No.	mm	mm	mm	mm		mm	mm	mm	Nut No.	kg
AOH3132	150	103	108	16	M6	4.5	8	M180*3	AN36	3.210
AOH3134	160	104	109	16	M6	4.5	8	M190*3	AN38	3.400
AOH3136	170	116	122	19	M6	4.5	8	M200*3	AN40	4.220
AOH3138	180	125	131	20	M6	4.5	8	Tr210*4	HN42	4.890
AOH3140	190	134	140	21	M6	4.5	8	Tr220*4	HN44	5.490
AOH3144	200	145	151	23	G 1/8	8.5	12	Tr240*4	HN48	10.400
AOH3148	220	154	161	25	G 1/8	8.5	12	Tr260*4	HN52	12.000
AOH3152	240	172	179	26	G 1/8	8.5	12	Tr290*4	HN58	16.200
AOH3156	260	175	183	28	G 1/8	8.5	12	Tr310*5	HN62	17.500
AOH3160	280	192	200	30	G 1/8	8.5	12	Tr330*5	HN66	20.800
AOH3164	300	209	217	31	G 1/8	8.5	12	Tr350*5	HN70	24.500
AOH3168	320	225	234	33	G 1/8	8.5	12	Tr370*5	HN74	29.000
AOH3172	340	229	238	35	G 1/8	8.5	12	Tr400*5	HN80	33.000
AOH3176	360	232	242	36	G 1/8	8.5	12	Tr420*5	HN84	35.700
AOH3180	380	240	250	38	G 1/8	8.5	12	Tr440*5	HN88	39.500
AOH3184	400	266	276	40	G 1/8	8.5	12	Tr460*5	HN92	46.500
AOH3188	420	270	281	42	G 1/8	8.5	12	Tr480*5	HN96	49.800
AOH3192	440	285	296	43	G 1/8	8.5	12	Tr510*6	HN102	57.900
AOH3196	460	295	307	45	G 1/8	8.5	12	Tr530*6	HN106	63.100
AOH 31/500	480	313	325	47	G 1/8	8.5	12	Tr550*6	HN110	70.900
