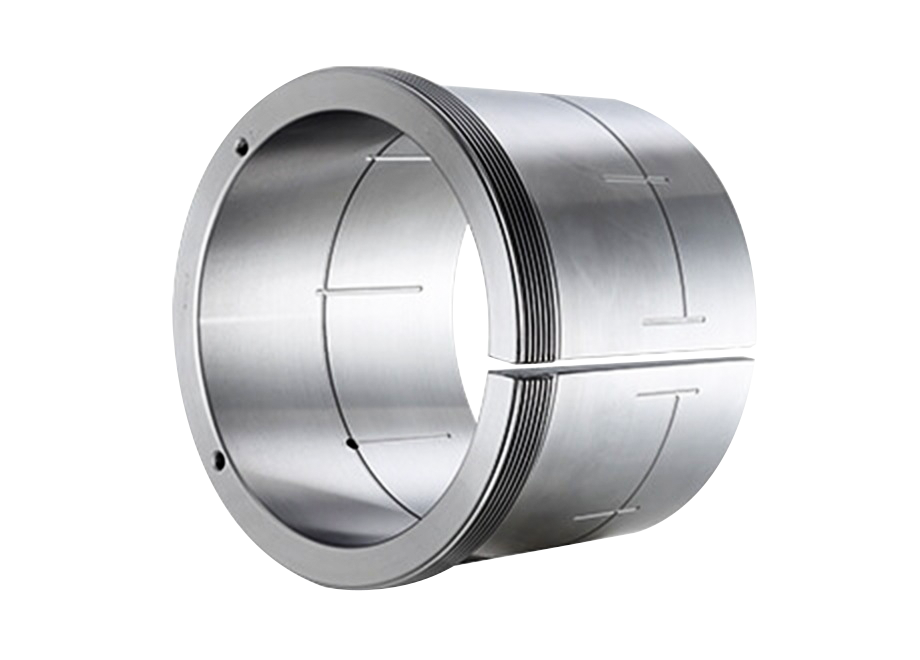

AOH30 油圧取外しスリーブ

長さ: 77-209 mm

AOH30 Spec Sheet

この組み合わせは存在しません。

仕様

HYDRAULIC	d1	L	L¹⁾₁	b		e	t	Thread ²⁾	Appropriate	Weight
WITHDRAWAL					Ro			D1	Withdrawal
SLEEVES No.	mm	mm	mm	mm		mm	mm	mm	Nut No.	kg
AOH3032	150	77	82	16	M6	4.2	8	M170*3	AN34	2.060
AOH3034	160	85	90	17	M6	4.2	8	M180*3	AN36	2.430
AOH3036	170	92	98	17	M6	4.2	8	M190*3	AN38	2.810
AOH3038	180	96	102	18	M6	4.2	8	Tr205*4	HNL41	3.320
AOH3040	190	102	108	19	M6	4.2	8	Tr215*4	HNL43	3.800
AOH3044	200	111	117	20	G 1/8	8.5	12	Tr235*4	HNL47	7.400
AOH3048	220	116	123	21	G 1/8	8.5	12	Tr260*4	HNL52	8.750
AOH3052	240	128	135	23	G 1/8	8.5	12	Tr280*4	HNL56	10.700
AOH3056	260	131	139	24	G 1/8	8.5	12	Tr300*4	HNL60	12.000
AOH3060	280	145	153	26	G 1/8	8.5	12	Tr320*5	HNL64	14.400
AOH3064	300	149	157	27	G 1/8	8.5	12	Tr345*5	HNL69	16.000
AOH3068	320	162	171	28	G 1/8	8.5	12	Tr365*5	HNL73	19.500
AOH3072	340	167	176	30	G 1/8	8.5	12	Tr385*5	HNL77	21.000
AOH3076	360	170	180	31	G 1/8	8.5	12	Tr410*5	HNL82	23.200
AOH3080	380	183	193	33	G 1/8	8.5	12	Tr430*5	HNL86	27.300
AOH3084	400	186	196	34	G 1/8	8.5	12	Tr450*5	HNL90	29.000
AOH3088	420	194	205	35	G 1/8	8.5	12	Tr470*5	HNL94	32.000
AOH3092	440	202	213	37	G 1/8	8.5	12	Tr490*5	HNL98	35.200
AOH3096	460	205	217	38	G 1/8	8.5	12	Tr520*6	HNL104	39.200
AOH30/500	480	209	221	40	G 1/8	8.5	12	Tr540*6	HNL108	42.500
